Power tools are essential for many tasks, but they can also be dangerous if not used properly. Double insulated power tools are designed to reduce the risk of electric shock, making them a safer option for DIYers and professionals alike.
In this blog post, we’ll discuss what double insulation is, how it works, and why it’s important for power tools. We’ll also provide some tips on how to use double insulated power tools safely.
So, if you’re thinking about buying a new power tool, be sure to consider a double insulated model. It’s an investment in your safety.
What Is A Double Insulated Power Tool
Double insulated power tools are designed with two layers of insulation to protect you from electric shock. This makes them a safer option for use in damp or wet conditions, and for people who are working with electricity. All power tools should be used with caution, but double insulated tools offer an extra layer of protection.

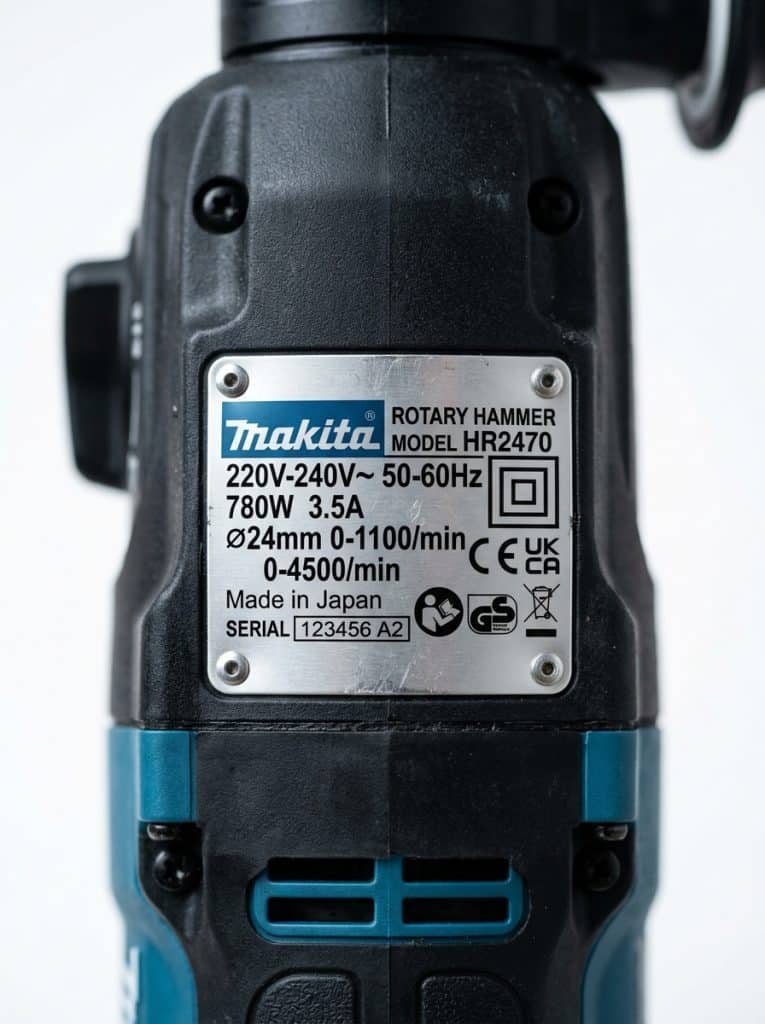

What Does the Double Insulation Symbol Look Like?
The double insulation symbol is a small square inside a larger square — you will find it printed on the tool’s body or nameplate. It looks like this: □□. If you see this symbol, the tool does not need an earth wire connection to be safe.
Double Insulated vs Single Insulated Power Tools — What’s the Difference?
Single insulated tools rely on an earth wire (the third prong on a plug) as backup protection. Double insulated tools have two physical layers of insulation built into the tool itself — so even if the inner layer fails, the outer casing protects you. This means double insulated tools use a 2-pin plug, not a 3-pin plug.
Examples of Common Double Insulated Power Tools
Most handheld power tools sold today are double insulated including:
- Cordless drills (Dewalt, Ryobi, Makita)
- Electric chainsaws (Greenworks, Black+Decker)
- Circular saws (Dewalt, Skilsaw)
- Orbital sanders (Bosch, Makita)
- Jigsaws (Bosch, Black+Decker)
- Angle grinders (Dewalt, Makita)
Is Double Insulated Safer Than Earthed Tools?
Yes — double insulated tools are considered equally safe to earthed tools by most electrical safety standards including IEC 61140 and EN 60335. In fact many professionals prefer double insulated tools because they work safely on 2-pin extension leads and in locations where a proper earth connection may not be available.
Can Double Insulated Power Tools Get Wet?
Double insulation does not make a tool waterproof. You should never use any power tool in wet conditions unless it is specifically rated for outdoor or wet use with an IP rating. Always check the manufacturer’s guidance before using tools near water.
How to Check if Your Power Tool is Double Insulated
- Look for the double square symbol on the tool body
- Check if the plug has 2 pins instead of 3
- Check the manual — it will state Class II or Double Insulated
- Check the nameplate for the □□ symbol
What is a Double Insulated Power Tool?
What is Double Insulation?
Double insulation is a safety feature used in some power tools to protect the user from electric shock. It is achieved by having two layers of insulation between the live parts of the tool and the user. The inner layer of insulation is usually made of a thin layer of insulating material, such as rubber or plastic. The outer layer of insulation is usually made of a thicker layer of insulating material, such as a rubber or plastic housing.
Why is Double Insulation Important?
Double insulation is important because it provides an extra layer of protection against electric shock. If the inner layer of insulation is damaged, the outer layer of insulation will still protect the user from electric shock. This is because the two layers of insulation are not connected to each other, so if one layer is damaged, the other layer will still provide protection.
How Can I Tell if a Power Tool is Double Insulated?
Double insulated power tools will usually have a label on the tool that says Double Insulated. You can also check the owner’s manual to see if the tool is double insulated.
Are All Power Tools Double Insulated?
No, not all power tools are double insulated. Some power tools, such as those that are used in wet or dusty environments, may only have a single layer of insulation. If you are not sure if a power tool is double insulated, you should always assume that it is not and take precautions to avoid electric shock.
How Can I Protect Myself from Electric Shock When Using a Power Tool?
Even if a power tool is double insulated, you should still take precautions to avoid electric shock. Here are some tips:
Always wear rubber gloves when using a power tool:
Rubber gloves will provide an extra layer of protection against electric shock.
Never touch the live parts of a power tool with your bare hands:
Always use the handles or controls provided on the tool.
Be careful not to drop a power tool:
If a power tool is dropped, it could damage the insulation and expose the live parts.
Keep the work area clean and free of debris:
Debris can damage the insulation on a power tool and expose the live parts.
Unplug the power tool when not in use:
This will help to prevent accidental contact with the live parts of the tool.
By following these tips, you can help to protect yourself from electric shock when using a power tool.
Also Read: What Is A Power Actuated Tool
FAQs: What is a double insulated power tool?
What is double insulation?
Both layers are made of non-conductive insulating materials such as plastic or reinforced thermoplastic. The outer casing itself acts as the second layer of insulation.
What are the benefits of double insulation?
Double insulation provides a higher level of protection than single insulation. This is because it is more difficult for two layers of insulation to be damaged simultaneously than it is for a single layer of insulation. As a result, double insulated power tools are safer to use than single insulated power tools.
Are all power tools double insulated?
No, not all power tools are double insulated. Some power tools, such as hand-held drills and saws, are only single insulated. This is because they are less likely to come into contact with live parts than larger power tools, such as table saws and grinders.
How can I tell if a power tool is double insulated?
Double insulated power tools will have a double insulation symbol on the label. The symbol is a stylized E with two lines through it.
What should I do if I think a power tool is not double insulated?
If you are not sure if a power tool is double insulated, you should not use it. It is always better to be safe than sorry.
